Autoklaven und Gefriertrockner direkt vom Hersteller

Laboratory and benchtop autoclaves from 25 to 200 liters chamber volume

Laborautoklav, Pharmaautoklav

Autoclaves in round and square design

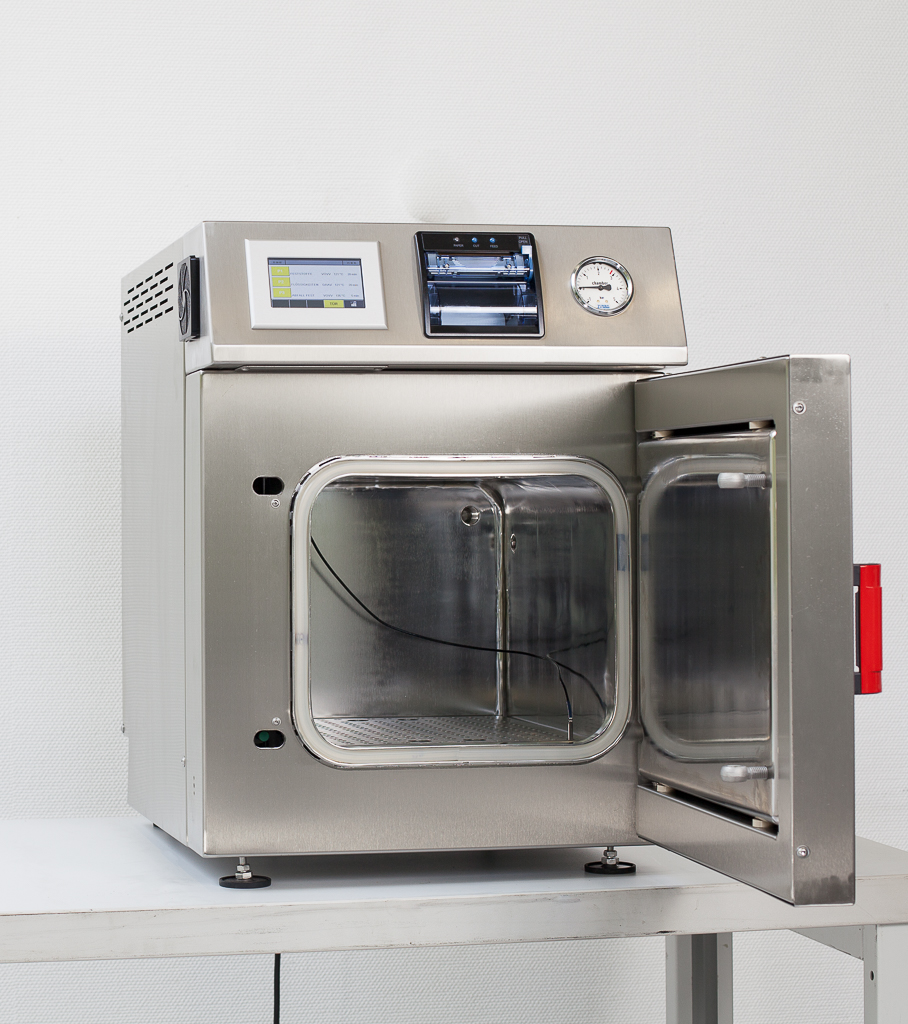

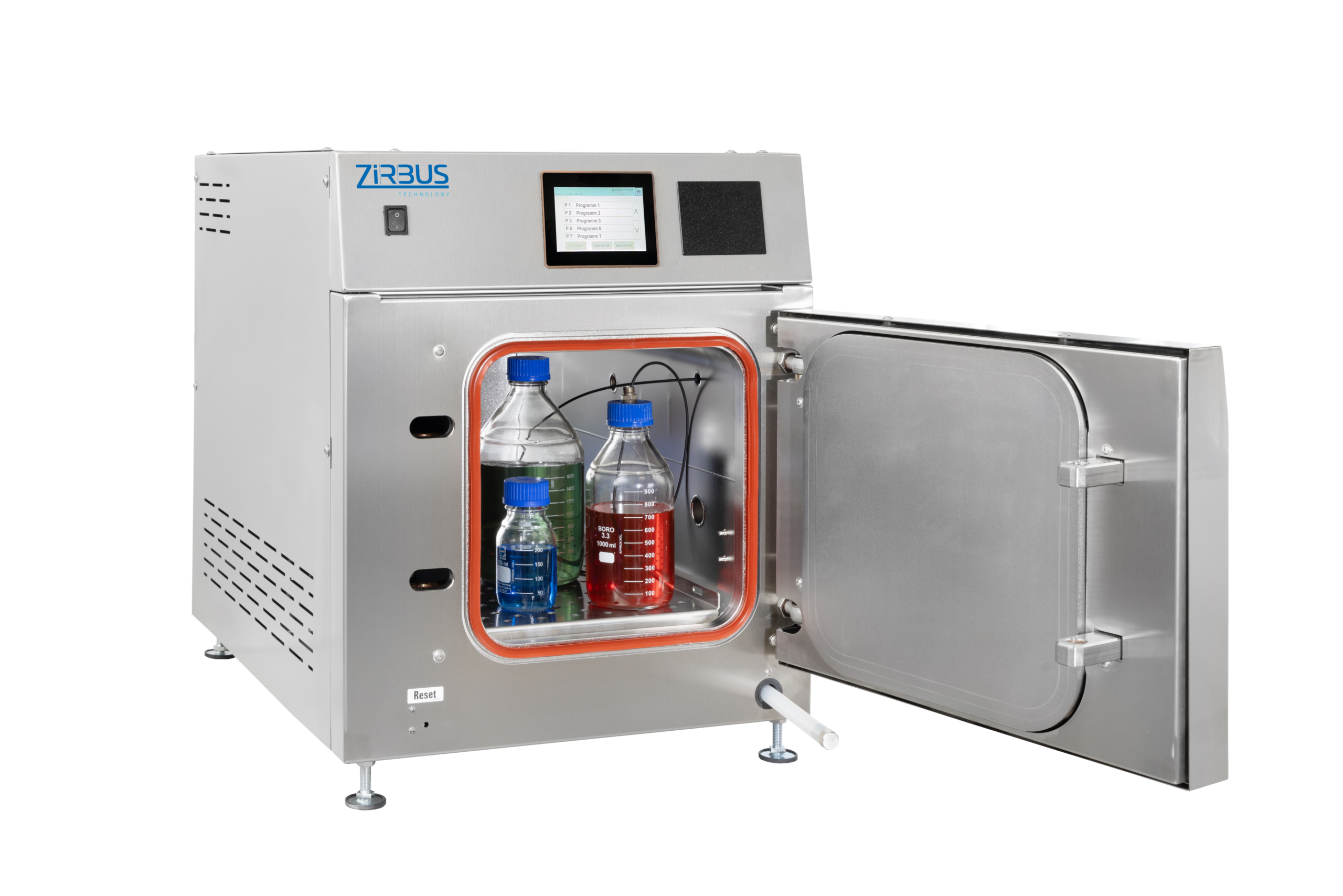

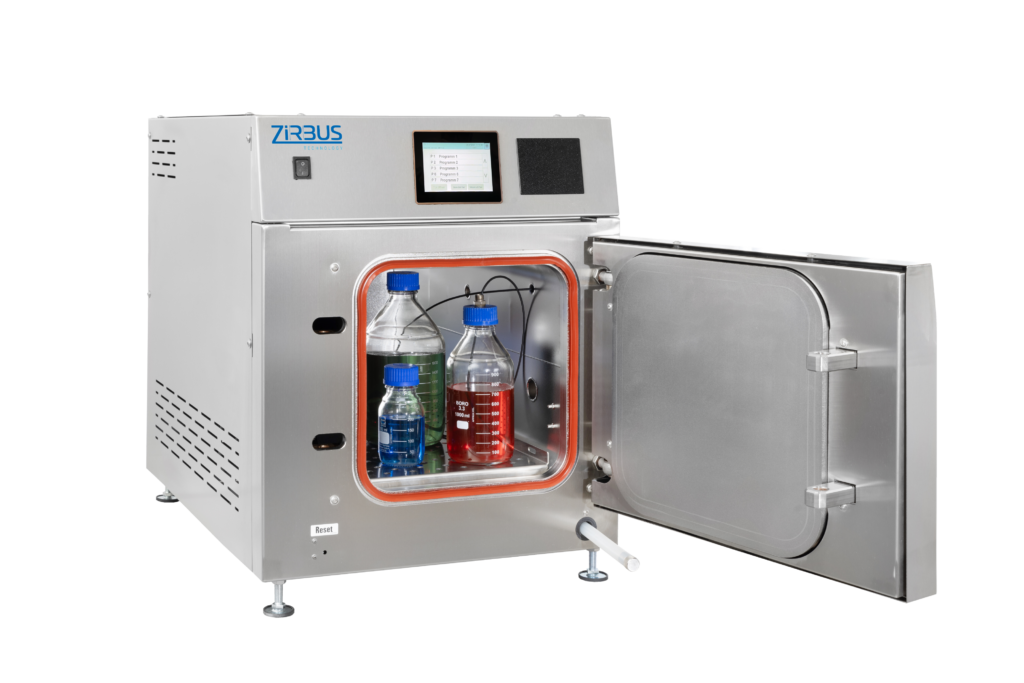

Our benchtop autoclaves not only fit on any laboratory bench, but the chamber is additionally designed to achieve optimal loading capacity with many standard flasks (e.g. Schott) and Erlenmeyer flasks. Our laboratory and benchtop autoclaves are available in six different sizes and are designed to save space. The angular chamber of the Labstar 40 and LabStar 70 autoclaves are a special feature. They offer a much higher loading capacity than a round chamber unit with almost identical external dimensions. Starting with the LabStar 100, the laboratory autoclaves are also available as pass-through versions.



The following is an overview of the LabStar series:

LabStar 25 Ο LabStar 40 ◼ LabStar 70 ◼ LabStar 100 Ο LabStar 150 Ο LabStar 200 Ο
Chamber volume 25 Liter 40 Liter 65 Liter 100 Liter 150 Liter 200 Liter
Chamber dimensions
(WxHxD) mm
Ø 300 x 360 295 x 295 x 460 310 x 310 x 680 Ø 500 x 500 Ø 500 x 750  Ø 500 x 1000
External dimensions
(WxHxD) mm
450 x 525 x 640 532 x 605 x 698 700 x 644 x 820 750 x 900 x 1000 750 x 900 x 1000 750 x 900 x 1250
Electrical connection 240V 50Hz 16A
115V 60Hz 20A
240V 50Hz 16A
115V 60Hz 20A
400V 50Hz 16A
220V 60Hz 25A
400V 50Hz 16 A 400V 50Hz 16 A 400V 50Hz 16 A
directly heated chamber
(power in kW)
2,5 2,5 4,4
Steam generator
(power in kW)
6,0 6,0 9,0 9,0

Ο = round chamber; = square chamber








The following equipment variants are available:

Equipment variant

Labstar 25
Labstar 40

Labstar 70
Labstar 100
Labstar 150
Labstar 200

Basic Lab

recommended for sterilization of simple goods or liquids without dry removal

  • Basic version with heater
  • Basic version with heater

Dry Lab

recommended for sterilization of non-infectious waste bags and goods that require intensive post-drying

  • Membrane vacuum pump
  • Water ring vacuum pump

Quick Lab Basic

recommended for sterilization of large quantities of liquids

  • Water cooling
  • Internal heat exchanger
  • Water cooling
  • Internal heat exchanger
  • Recirculation valve

Quick Lab

recommended for sterilization of non-infectious waste bags, large quantities of liquids and goods that require intensive post-drying

  • Water cooling
  • Internal heat exchanger
  • Membrane vacuum pump
  • Water ring vacuum pump
  • Water cooling
  • Internal heat exchanger
  • Recirculation valve

Quick Lab Advanced

recommended for sterilization of non-infectious waste bags,
large quantities of liquids and goods that require intensive post-drying – this also applies to liquids in closed containers

not available
  • Water ring vacuum pump
  • Water cooling
  • Internal heat exchanger
  • Recirculation valve
  • Steam-air mixture process

Safe Lab

recommended for operation in S2 laboratory and for sterilization of infectious waste bags and goods that require intensive post-drying

  • Membrane vacuum pump
  • Exhaust air filtration ALF
  • Water ring vacuum pump
  • Exhaust air filtration ALF

Complete Lab

Fully equipped laboratory autoclave for operation in S2 laboratory. Recommended for sterilization of infectious waste bags, large volumes of liquids and goods requiring intensive post-drying.

  • Membrane vacuum pump
  • Exhaust air filtration ALF
  • Water cooling
  • Internal heat exchanger
  • Water ring vacuum pump
  • Water cooling
  • Internal heat exchanger
  • Recirculation valve
  • Exhaust air filtration ALF

*Labstar 100, 150 and 200 with steam generator








Explanation of the individual components



Steam generator
Independent of the sterilization chamber integrated in the autoclave housing. Ensures rapid heating and cooling compared to conventional heating systems.

Water rapid recooling with circulating air fan
Enables a reduction in re-cooling time of over 80 % compared to self-cooling in the sterilization of liquids. This is achieved by means of an internal heat exchanger through which water flows, also known as a “fast cooler”.

Vacuum pump kit
For mechanical removal of air and drying in vacuum. Possible processes are single-stage vacuum, fractionated vacuum, continuous or pulsating drying in vacuum. Furthermore, the post-drying can be accelerated by supporting a jacket heating.

Exhaust air filtration
Condensate activation for sterilization of pathogenic substances in S2/S3 laboratories according to TRB 100.

Steam-air mixture process
For the sterilization of tightly closed bottles and pressure-sensitive goods. An additional temperature sensor, air baffles and a circulating air fan ensure precise temperature control and distribution.

Documentation
For documentation, a printer with network connection and our Sterilog batch documentation software (via RJ45 Ethernet interface or as USB memory card) are optionally available.

Qualification
For equipment qualification, we offer comprehensive IQ, OQ and DQ.

Touch display with control
Enables simple and intuitive operation on the autoclave. In conjunction with user-friendly software, this allows the autoclave to be operated quickly but also highly variably and easily. Maximum variability is ensured by 12 program positions, 10 of which are fully variable.
The following parameters can be freely set for each program:
– Program type: solid, liquid, waste solid, waste liquid
– Sterilization temperature: 105°C…138°C
– Sterilization time: 1min…60min
– Excess temperature for liquids: 0…3°C
– Holding time at the end of the liquid program 1min…60min
– Timer for programmable start time

Accessories
From our LabStar 100, stainless steel base cabinets, transport and batch trolleys are available.






Titel Date File type Language Size
Brochure laboratory autoclaves April 2020 PDF english 1189kb



Continue to the vertical autoclaves with up to 150 liters chamber volume.
