Pure Steam Generator

Reinstdampferzeuger

Our compact electric steam generators of the Steamboy series are available in different sizes from 9 – 78kW. As standard, the units have a maximum operating temperature of 155°C; at an operating pressure of 5.5bar (abs). Optionally, a pressure increase to 8 bar or partially to max. 20 bar is also possible.

The pressure vessel is completely made of stainless steel 1.4571, ASi316Ti. A highly efficient insulation reduces heat radiation to a minimum. The housing and the supporting frame are made of finely brushed stainless steel 1.4301/ AiSi 304. The heating is done by high quality stainless steel heating elements controlled by a microprocessor controller. The steam pressure is infinitely variable via a built-in touch screen. The pressure vessel and the safety equipment comply with the European Pressure Equipment Directive DGRL 2014/68/EU.

Summary of advantages:

  • short heating up time
  • compact construction, therefore less space required at the place of installation
  • pressure container made of 1.4571/AiSi316Ti stainless steel
  • steam valves and pipes made of 1.4404/ AiSi316L stainless steel
  • case and support frame made of brushed-finished 1.4301/ AiSi 304 stainless steel
  • CPU-controlling with pressure adjustment depending on steam extraction and complete control for fully automatic operation

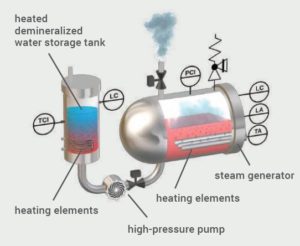

  • heated feed water tank for reduction of inert gas
  • fill level measurement without mechanical components and independent of water quality

Steam generator Steamboy:

steam output/h max. operating overpressure max. temperature
Steamboy 9 12 kg 5,0 bar 155°C
Steamboy 18 23 kg 5,0 bar 155°C
Steamboy 30 39 kg 3,5 bar 145°C
Steamboy 50 65 kg 5,0 bar 155°C
Steamboy 80 102 kg 5,0 bar 155°C



Technical highlights:

  • Steam Management System

Fully automatic microprocessor control with touch panel for easy operation. Adjustable operating pressure from 2000mbar … 4500mbar. Vapour pressure measurement is infinitely variable via a pressure sensor (remote control via network connection or potential free contact possible).

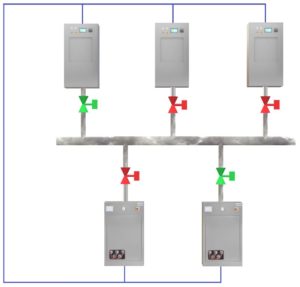

Steamboy - Autoklaven

  • High purity steam version

Steam-conducting valves and lines are made of stainless steel 1.4435/ AiSi316L and orbitally welded. Weld seams and inner surfaces are chemically passivated and electrochemically polished. The piping system in this version is designed without dead space

More options for the Steamboy:

  • Automatic steam generator desalination with conductivity measurement and heat recovery
  • Connection to the building control system
  • Water treatment
  • Steam pressure increase up to 20 bar on request
