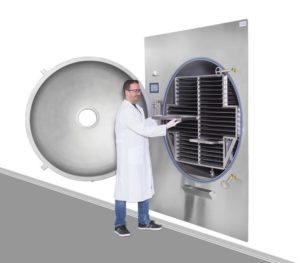

Vacuum dryer – VTA-Series
For use in the laboratory and for production
| Rectangular drying chamber | Round drying chamber | |
|---|---|---|
| Drying method | Contact or radiation drying under vacuum | |
| Product floor space | 1…30m² | 1…90m² |
| Footprint size | customer-specific possible | |
| Material | Stainless steel AISI 316L (1.4404) | |
| Temperature range | 20…120°C | |
| Heating | by heat transfer medium (water, oil) | |
Possible options:
- Floor space packages with different numbers and spacing
- Solvent capacitors ATEX version 2014/34/EU
- Vacuum control
- Automatic isolation valve between chamber and condenser for pressure rise measurements
- Capacitive vacuum sensor
- Oil-sealed or oil-free vacuum pumps
- Pharma GMP compliant execution
- Sterilization (SIP) with steam or VHP,
- Cleaning (CIP)
- Isolator connection
- Wall mounting
- Process visualization
- Product trays
- Pharmaceutical grade documentation IQ/OQ
