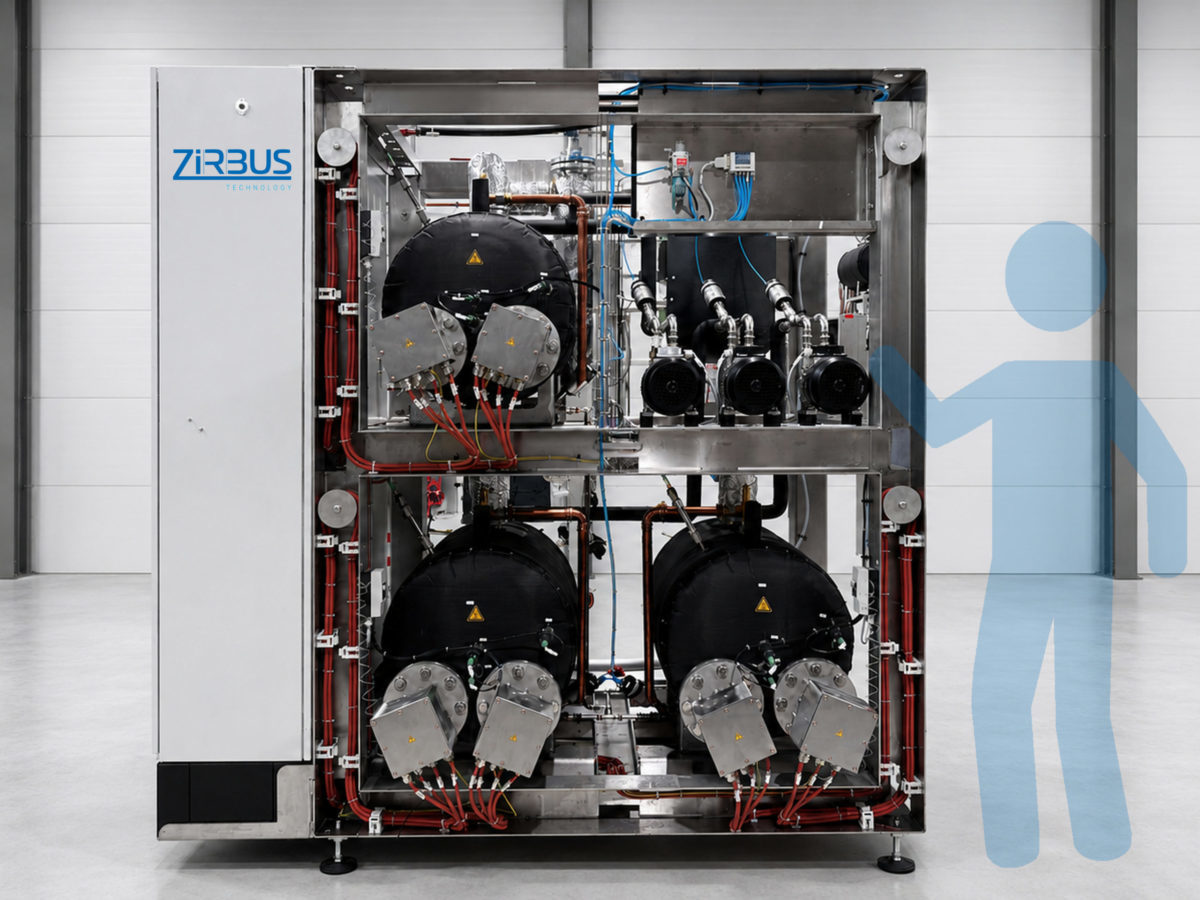

High-performance ultra-pure steam generation works even without fossil fuels. The STEAMBOY 240 generates ultra-pure steam entirely electrically—without on-site oil or gas combustion.
In short: electricity in, ultra-pure steam out.
High performance in a compact space
With an electrical power rating of 3 × 78 kW, the STEAMBOY 240 achieves a steam output of approximately 300 kg/h. The maximum operating pressure is 5 bar and can optionally be increased to 8 bar. Standard systems up to 320 kW are available.
Pressure vessels and piping made of high-quality AISI 316 stainless steel ensure the required quality and durability. Thermal degassing of the deionized water and automatic boiler desalination support reliable and efficient operation.
Intelligently connected and easy to control
An integrated energy management system ensures that the available electrical power is used according to demand. Thanks to its network connectivity and app control, the STEAMBOY 240 can be conveniently monitored and operated.
Technical Features at a Glance
- Electrical power: 3 × 78 kW
- Total power: up to 320 kW
- Steam output: approx. 300 kg/h
- Maximum operating pressure: 5 bar, optionally 8 bar
- Pressure vessels and piping made of AISI 316 stainless steel
- Thermal degassing of deionized water
- Automatic boiler desalination
- Integrated energy management system
- Network-compatible
- App-based control
- Designed in accordance with AD 2000, DGRL 2014/68/EU, and DIN EN 50156-2
- Certified according to Module H
The STEAMBOY 240 demonstrates how high steam output, a compact design, and an electric power supply can be combined—without any fossil fuel combustion at the installation site.
Are you interested in high-performance electric ultra-pure steam generation? Do you need more than 320 kW? Contact us. We’d be happy to advise you.
