Our demonstration and used units
Just contact us if you are interested in one of our devices. Depending on the design, we can install additional options so that the used autoclave and freeze dryer is also optimized for your task.
The legal warranty applies to all autoclaves and freeze dryers.
Worldwide shipping or delivery from Bad Grund/Harz.
Autoclaves

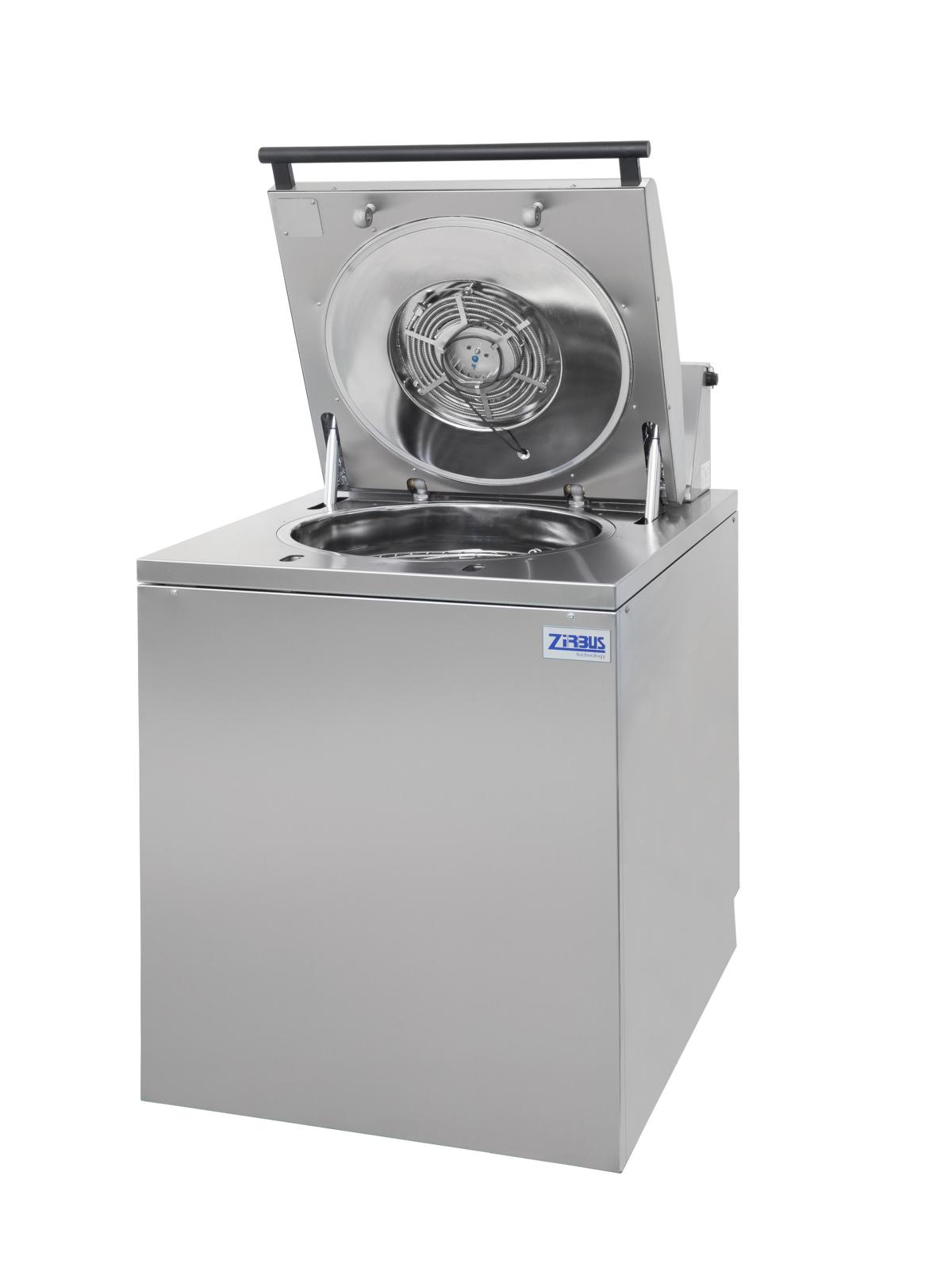

Laboratory-vertical autoclave LVSA 50/70
Key data:
- Useable chamber capacity: 153 liters
- Free usable space: (Ø) 500 mm x (D) 780 mm
- External dimensions: (W)750 x (H)1121 x (D)900mm
- Weight basic unit: 220kg
- Steam generator
- Basic Lab version
Laboratory-vertical autoclave LVSA 40/75
Key data:
- Useable chamber volume: 96 liter
- Free usable space: (Ø) 400 mm x (D) 770 mm
- External dimensions: (W)550mm x (H)1150mm x (D)800mm
- Weight of base unit: 185kg
- Steam generator
- Vacuum pump
- Water rapid recooling with recirculation fan
- Exhaust air filter with condensate sterilization
- Complete Lab version

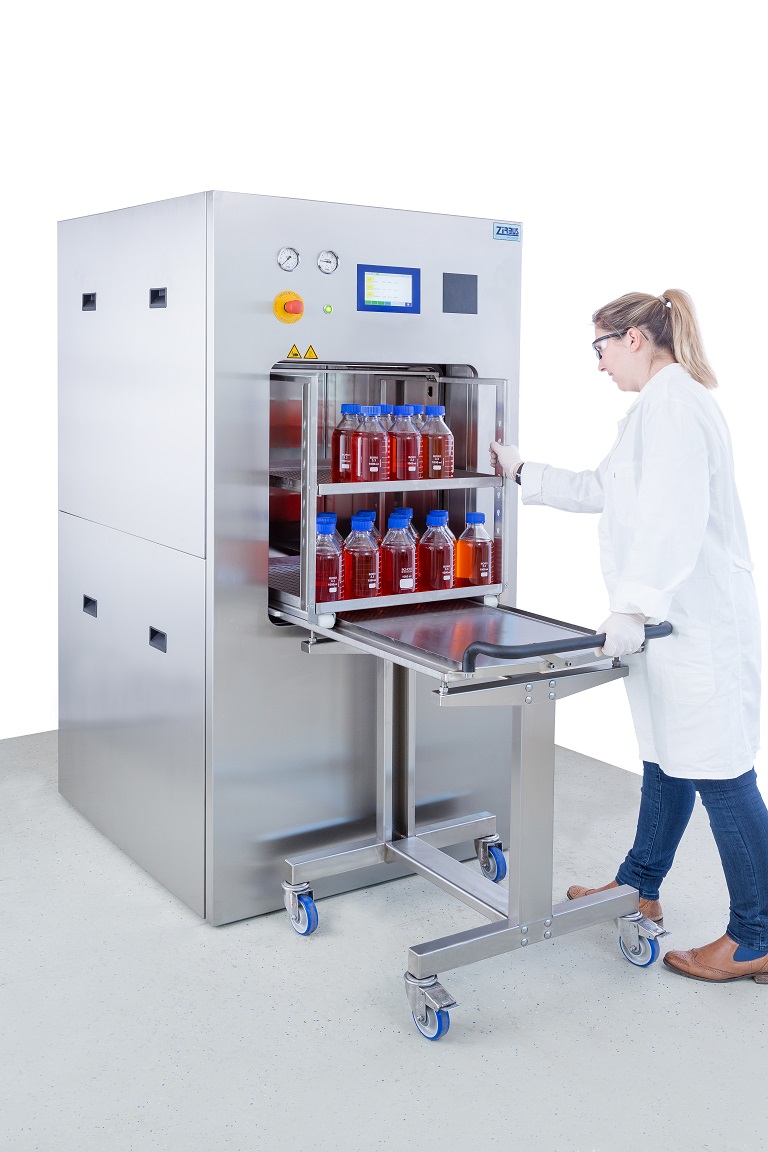

Stand autoclave - HST 6x6x6 T1 GMP
SN: 5007
Key data:
- Useable chamber volume: 318 liters
- Free usable space: (W) 650 mm x (H) 700 mm x (D) 670 mm
- External dimensions: (W) 980mm x (H) 1950mm x (D) 1200mm
- Weight in basic version: 580 KG
- GMP compliant chamber and piping
- Connection to a central steam supply
- Complete Lab GMP
- The following assemblies are integrated in the autoclave: Vacuum pump set, exhaust air filtration ALF, water rapid recooling, control SteriTouch L 10"
- Transport trolley
- Batch trolley with additional floor space
- Rails for batch trolleys
- Sterilization basket 1STE
- Siemens control
- Industrial PC 10"
- User management (only in conjunction with IPC)
- Optionally available with internal steam generator

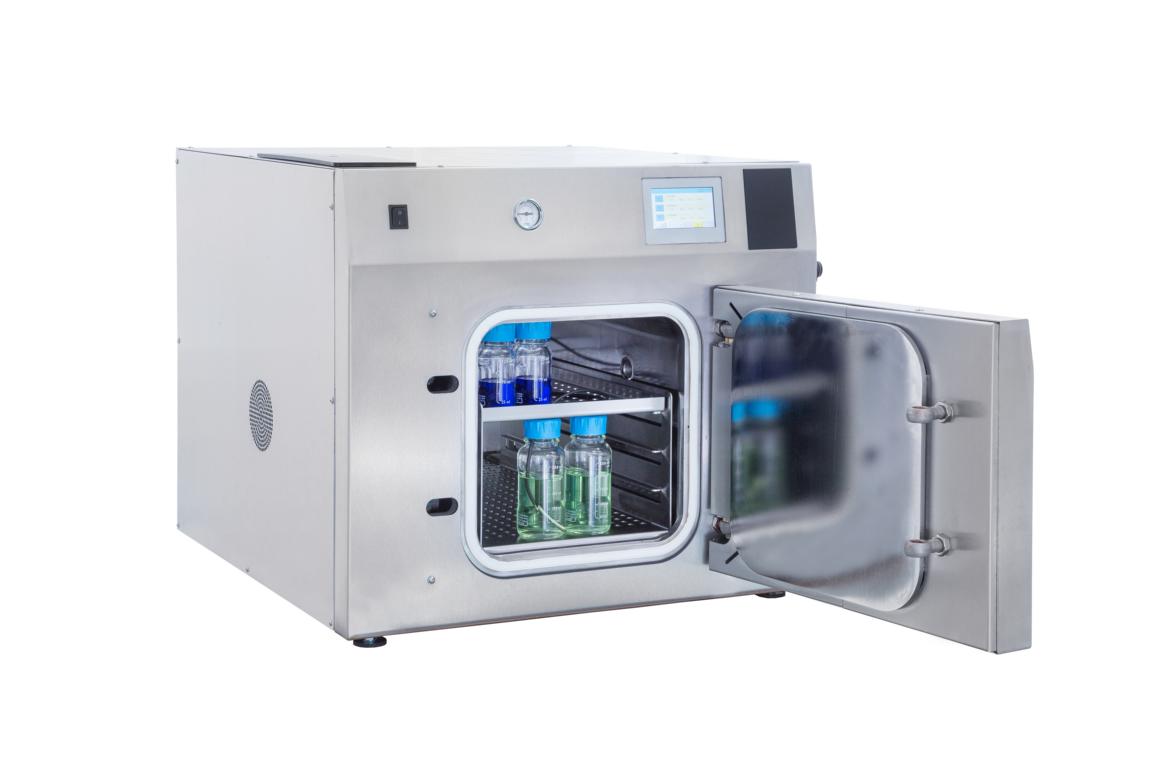

Lab bench-top autoclave LabStar 70
SN: 5303
Key data:
- Useable chamber volume: 65 liters
- Free usable space: (W) 310 mm x (H) 310 mm x (D) 680 mm
- External dimensions: (W) 700mm x (H) 644mm x (D) 820mm
- Weight in basic version: 125 KG
- Free configurable
Freeze Dryers

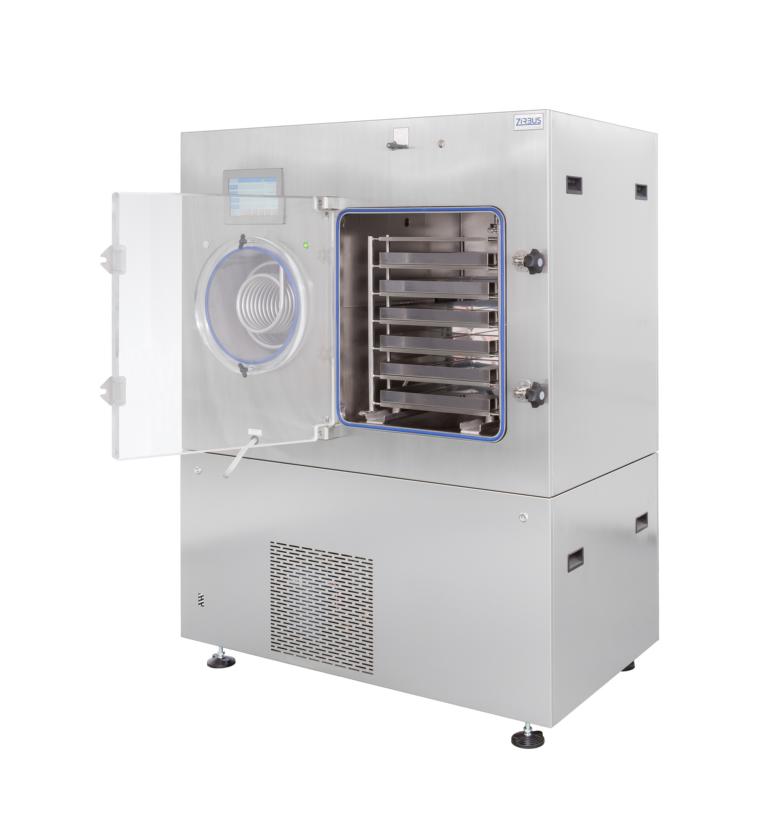

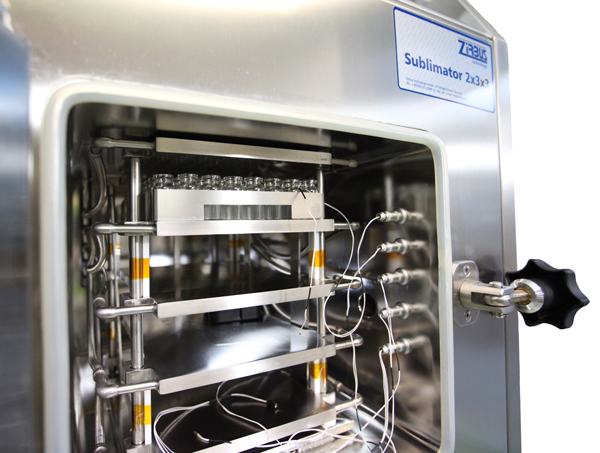

Freeze Dryer Sublimator 25, -75° C
Key data:
- Usable chamber volume: 265 liters
- -75° C ice condenser
- Free usable space: (W)500 x (H)700 x (D)730mm
- External dimensions: (W)1700 x (H)1925 x (D)900mm
- Weight: 900kg
- 6+1 shelves, usable area 1,26m², dimensions: 350x600mm
- GMP conform chamber and piping
- vacuum pump + -control
- 6x temperature sensors + conductivity sensor
- Closing device for vials
- Exhaust air filtration
- SIP + CIP
Freeze Dryer Sublimator 25, -75° C
Key data:
- Usable chamber volume: 265 liters
- -75° C ice condenser
- Free usable space: (W)500 x (H)700 x (D)730mm
- External dimensions: (W)1700 x (H)1925 x (D)900mm
- Weight: 900kg
- 6+1 shelves, usable area 1,26m², dimensions: 350x600mm
- GMP conform chamber and piping
- vacuum pump + -control
- 6x temperature sensors + conductivity sensor
- Closing device for vials
- Exhaust air filtration
- SIP + CIP
